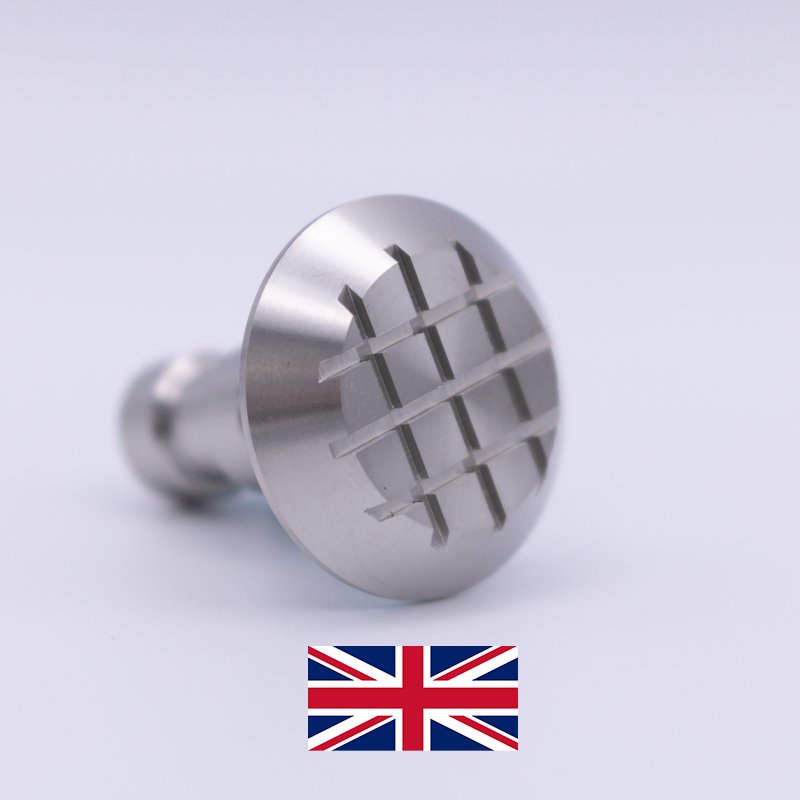

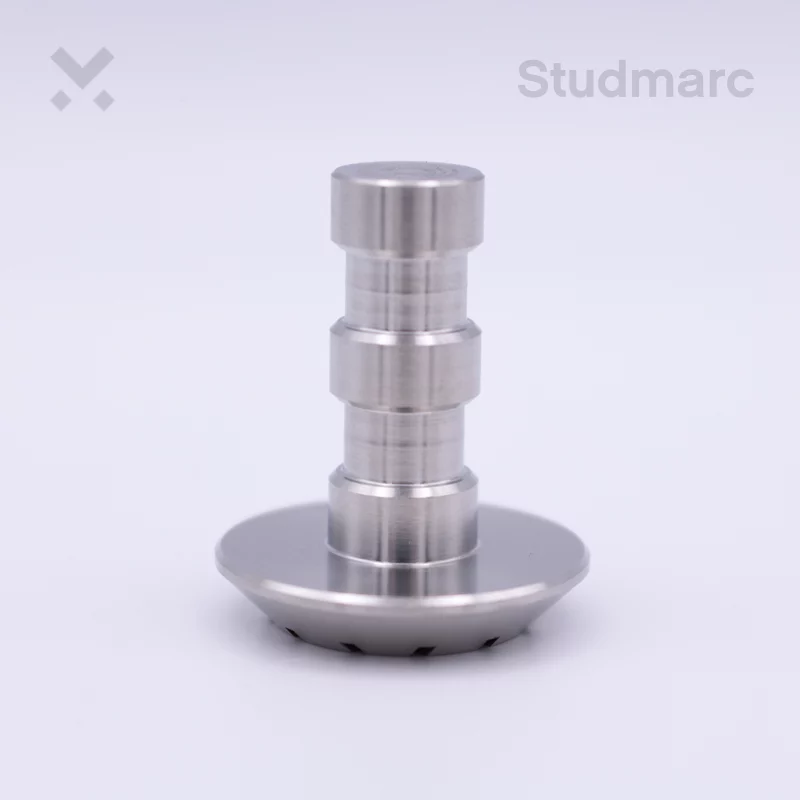

25mm Stainless Steel Crosshatch Tactile Stud

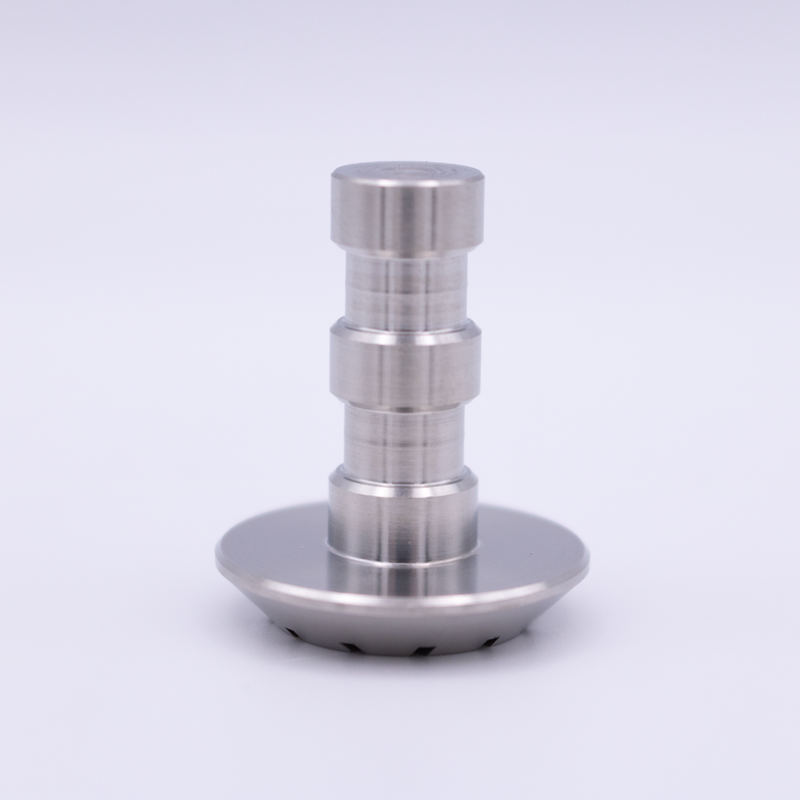

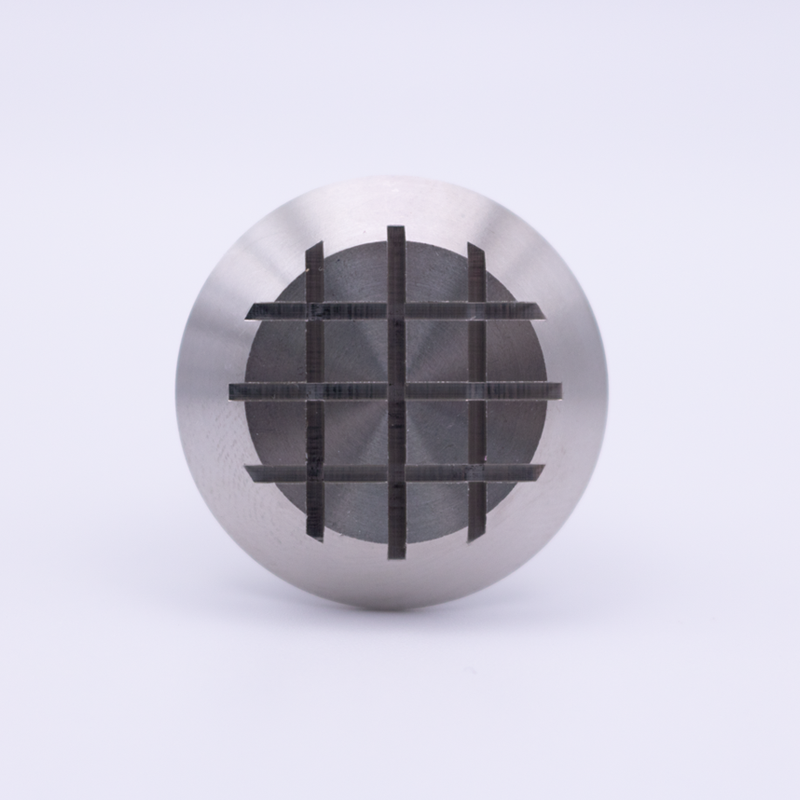

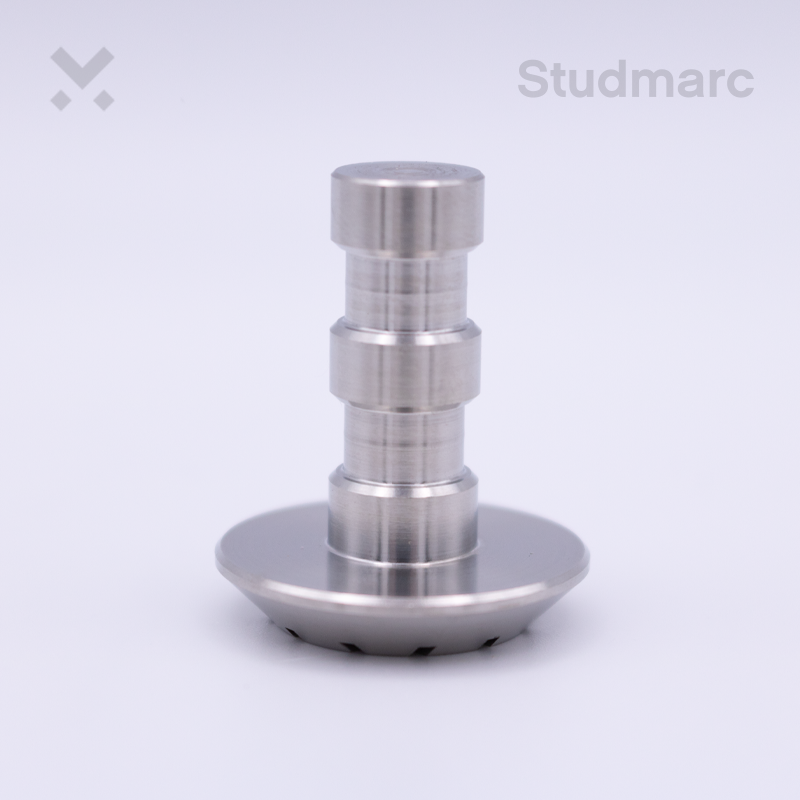

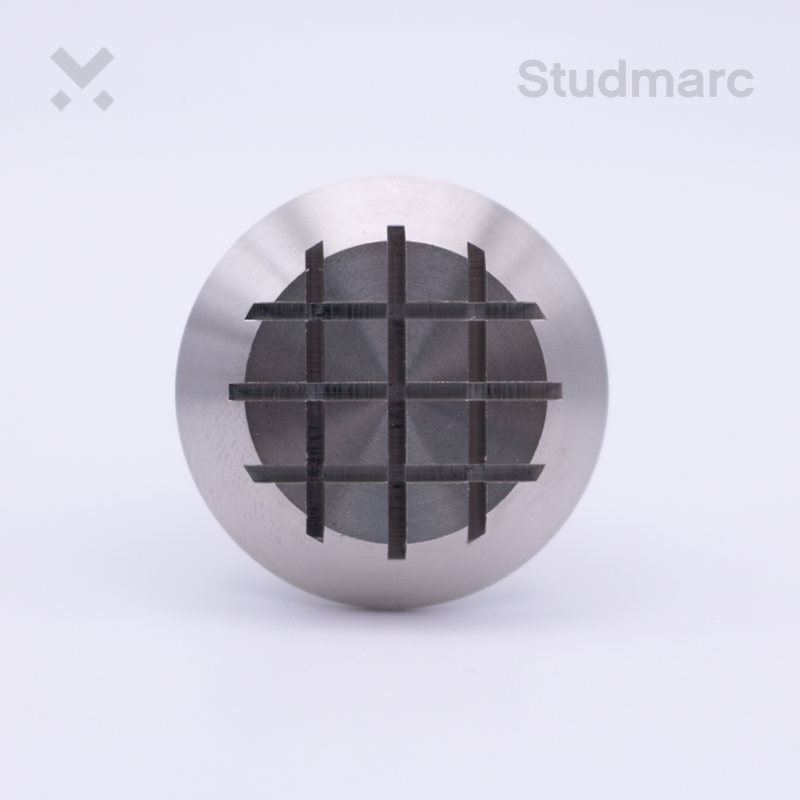

25mm Crosshatch Stud Front Stainless Steel Stud

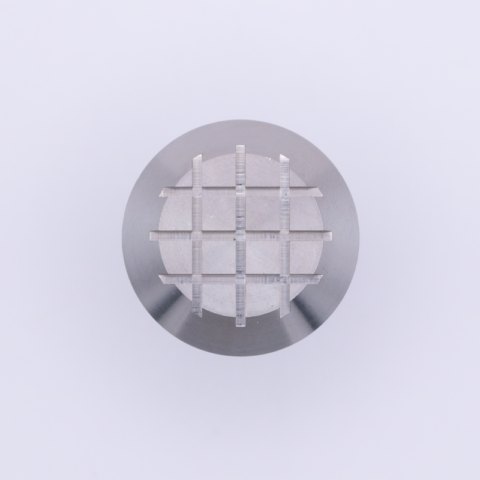

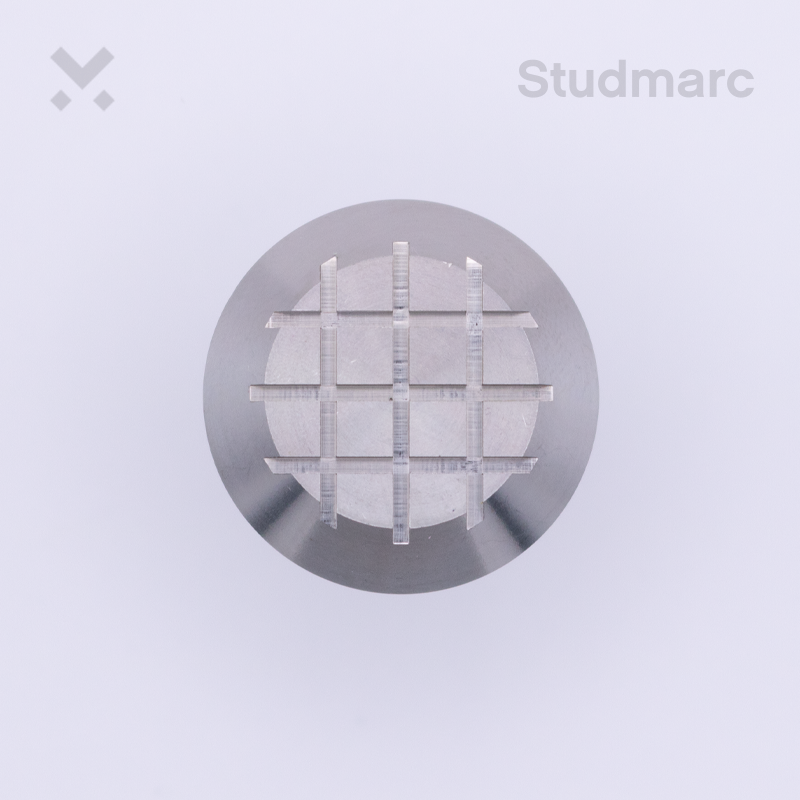

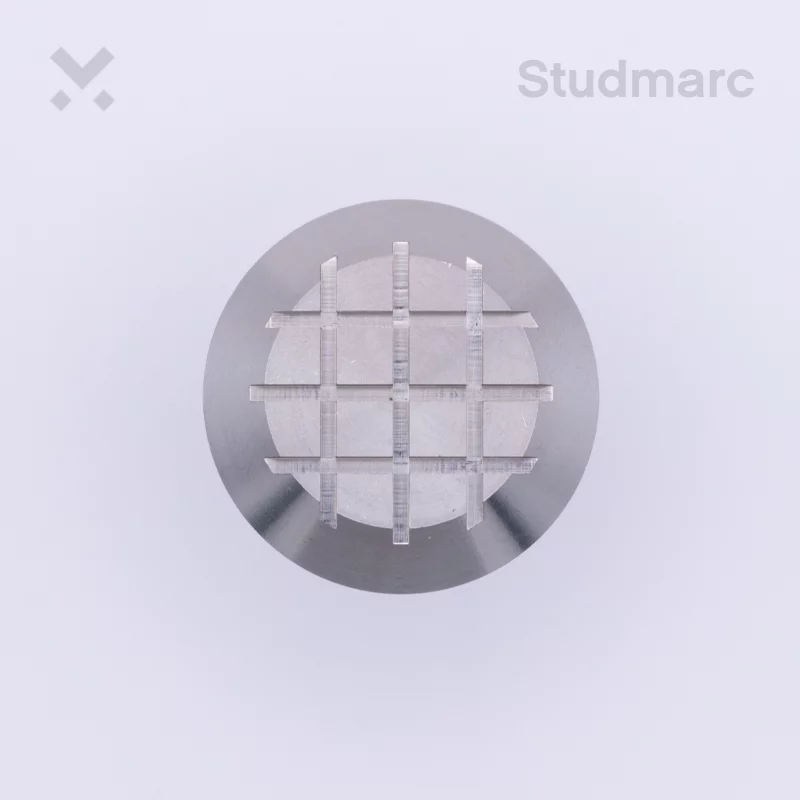

25mm Crosshatch Stud Front Stainless Steel Top

Diameter

25mm

Stud Height

5mm

DfT Compliant

Yes

Specification Sheet
Tactile Studs

SS(316L) Cross Hatch Tactile Stud 25mm

Indoor

Outdoor

Pedestrian

In Stock

Quantity Discounts

Quantity

100-199

200-299

300-399

400-499

500-999

1000+

Price

£2.98

£2.95

£2.91

£2.88

£2.82

£2.79

Quantity Discounts

Quantity

100-199

200-299

300-399

400-499

500-999

1000+

Price

£2.98

£2.95

£2.91

£2.88

£2.82

£2.79

SKU: 200-301
£3.1
In stock
Quantity discounts
* The price shown has been converted from GBP to show you the approximate cost in USD.
The exchange rate may change before you pay.

Description

This cross-hatch stainless steel tactile stud is manufactured from marine-grade 316L stainless steel and is finished with a cross-hatched surface. At 25mm in diameter and 5mm in height, this stud is in line with DfT guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.

Material Information

This stud is made from high-quality 316L stainless steel to ensure lifelong performance in the toughest of conditions. Due to its composition, 316L stainless steel has far superior weathering resistance when compared to other stainless steel, particularly when subjected to harsh rain, snow, or sleet.

Design

The cross hatch tactile stud features a bevelled edge with a cross hatch patterned surface. The shape of the stud provides ample tactile feedback with increased grip levels owing to its patterned surface. The grooves on the surface provide added stability in areas that are prone to heavy rainfall or contamination from things such as oil, diesel, or grease.

Application

These studs are ideal for use as:
  • Stair-nosing alternative
  • Area demarcation aids
  • Tactile guidance for the blind and visually impaired

Installation

These studs are installed by:
  1. Drilling into the desired surface
  2. Clearing the hole of dust and debris
  3. Applying epoxy resin as a fixing agent
  4. Inserting the stud into the hole
Please note: It can take around 24 hours for the epoxy resin to be completely set. Installation equipment required: Drill, drill bit, push pump, epoxy resin, and applicator gun.

£3.10

SKU: 200-301 Category: Tags: , ,

Diameter

25mm

Stud Height

5mm

DfT Compliant

Yes

Specification Sheet

You may also need:

Push Pump

Push Pump

£9.20
Caulking Gun

Heavy Duty Resin Gun

£19.33
A container of Epoxy Resin with an orange label and Nozzle

SuperBond Epoxy Acrylate Anchor Resin

£15.80
Thank you for your enquiry.
We will be in touch soon

Quantity Discounts

Quantity

100-199

200-299

300-399

400-499

500-999

1000+

Price

£2.98

£2.95

£2.91

£2.88

£2.82

£2.79

Quantity Discounts

Quantity

100-199

200-299

300-399

400-499

500-999

1000+

Price

£2.98

£2.95

£2.91

£2.88

£2.82

£2.79

Stud Calculator

Linear Metre

Square Metre

Please Choose some product options

We estimate you need 0 Studs

Still not sure? Get help choosing the right product

This product in action

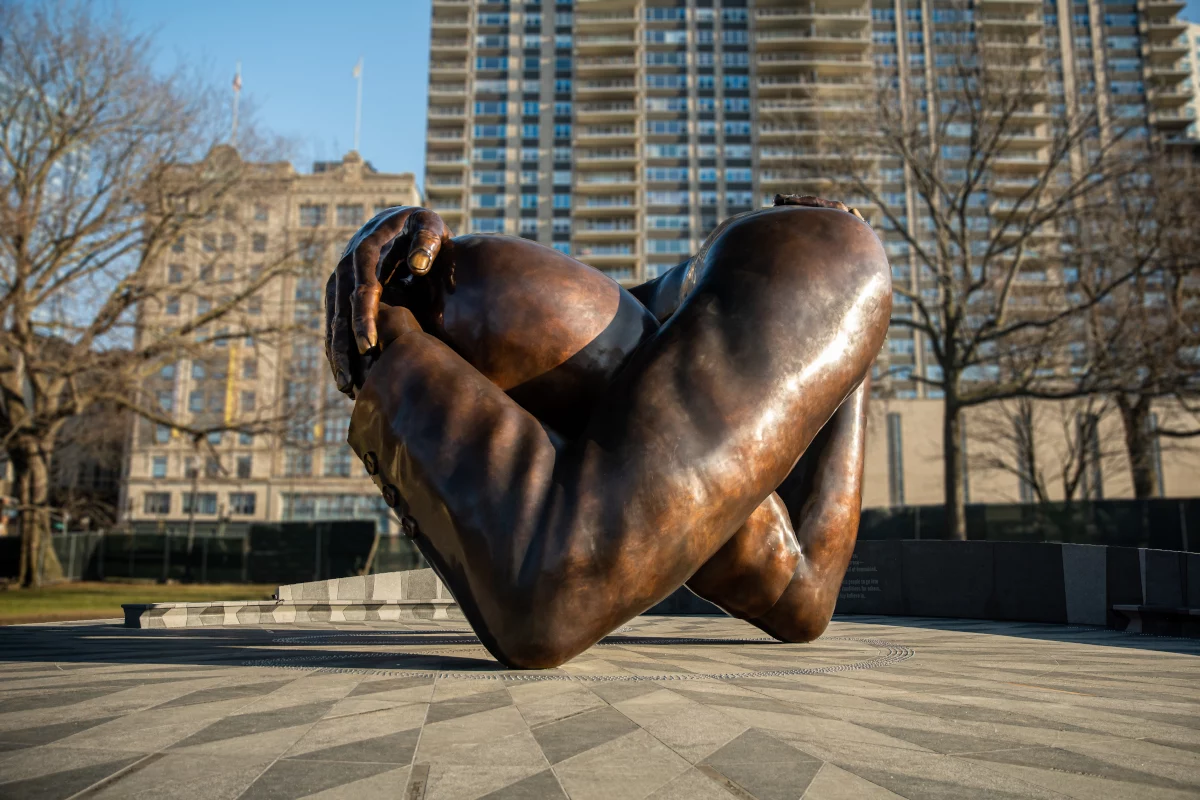

A bronze statue resembling two sets of arms embracing each other in a square with dark grey and light grey tiles on the floor. There are buildings in the distance behind the statue.

Case Study

Martin Luther King “The Embrace” Statue

Location: Boston, USA

Architect: MASS Design Group

Additional information

Weight .028 kg
Diameter

25mm
Height

5mm
Fitment

Machined Pin
Material

316L Stainless Steel
Origin

Made in Britain
