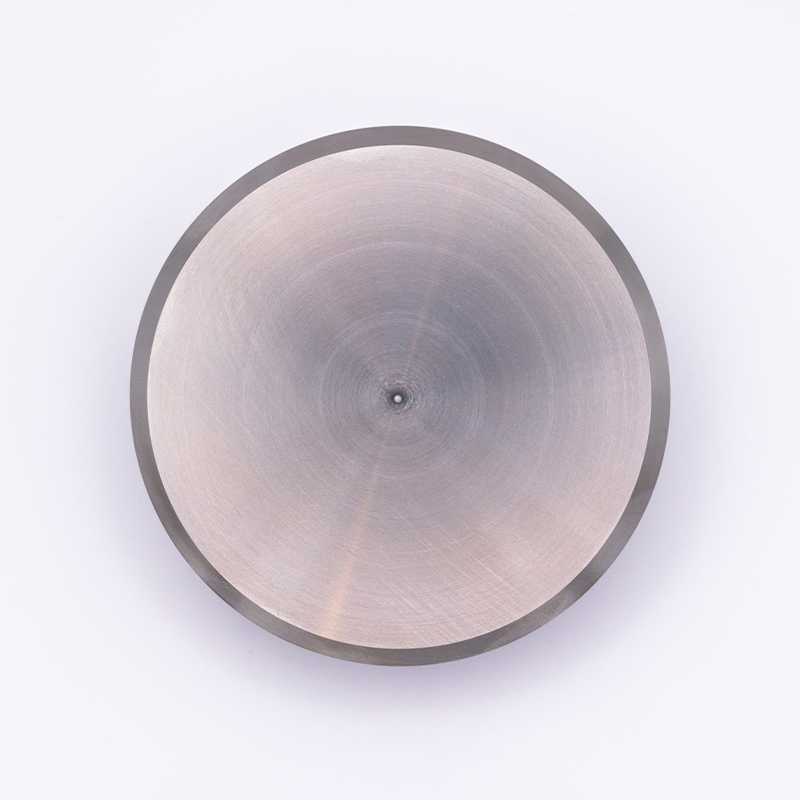

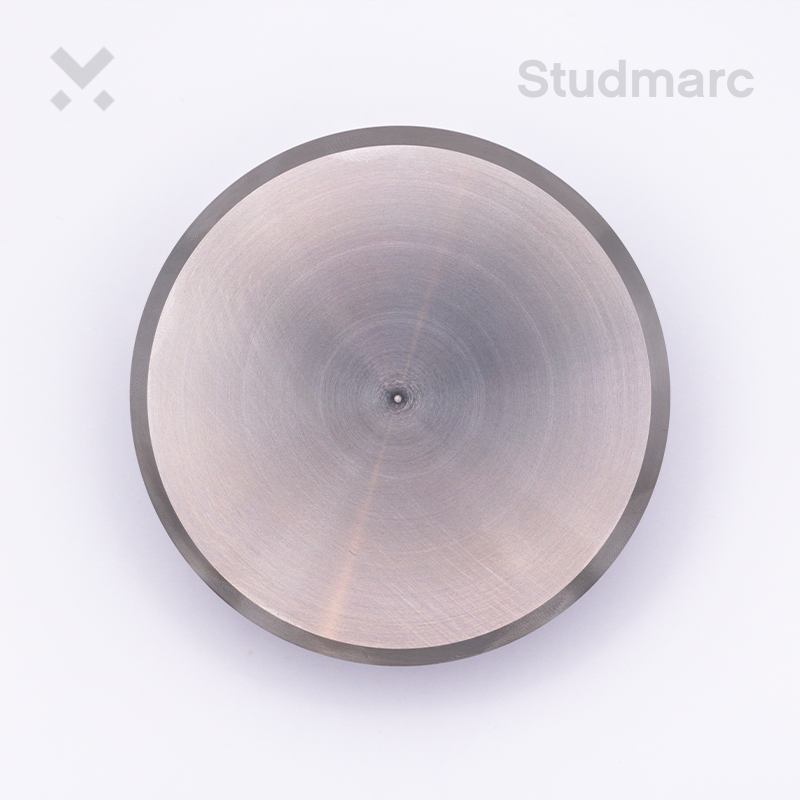

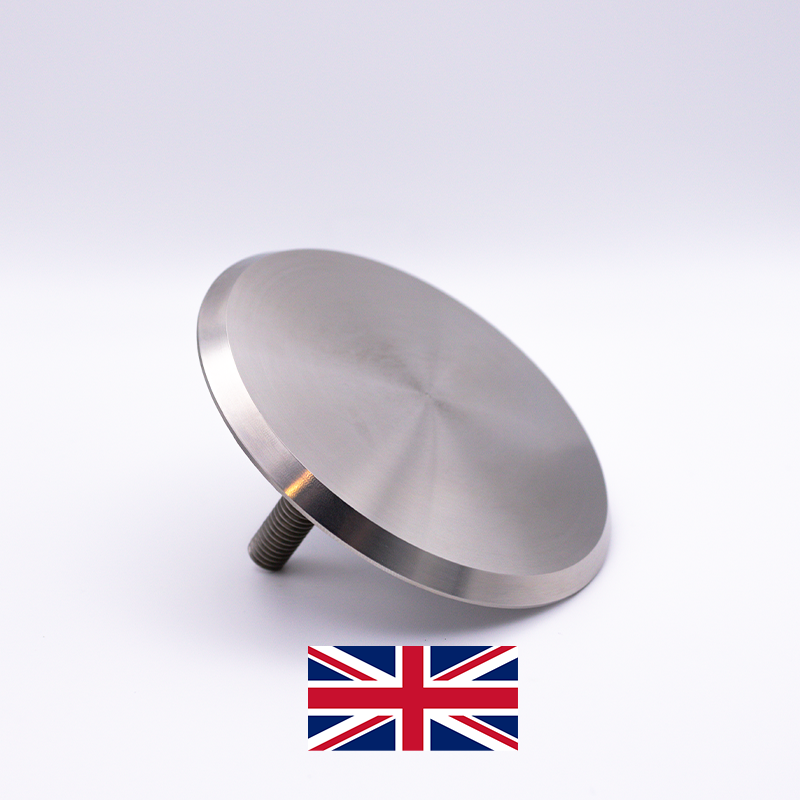

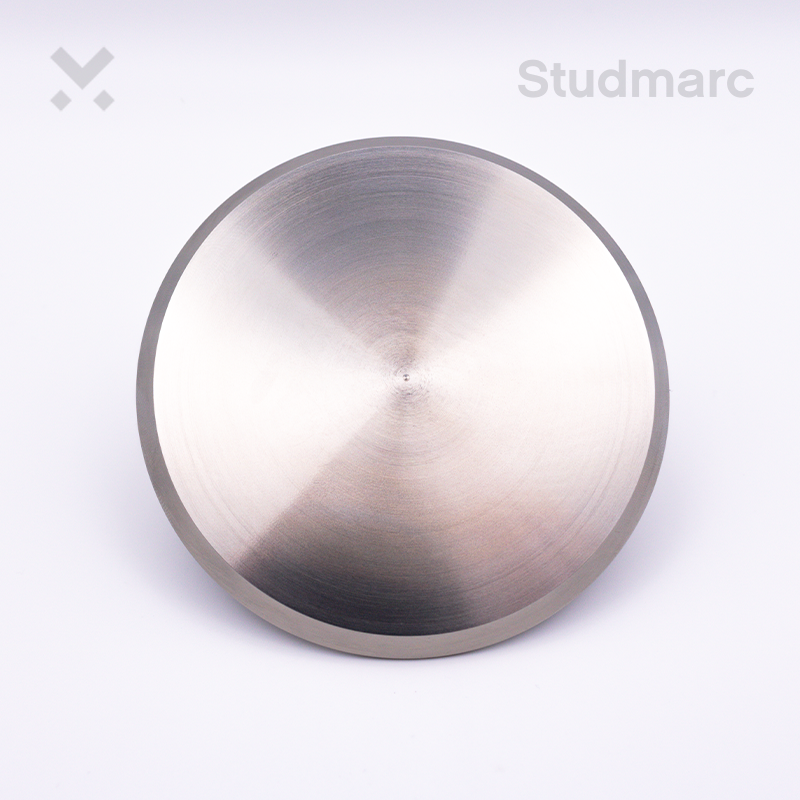

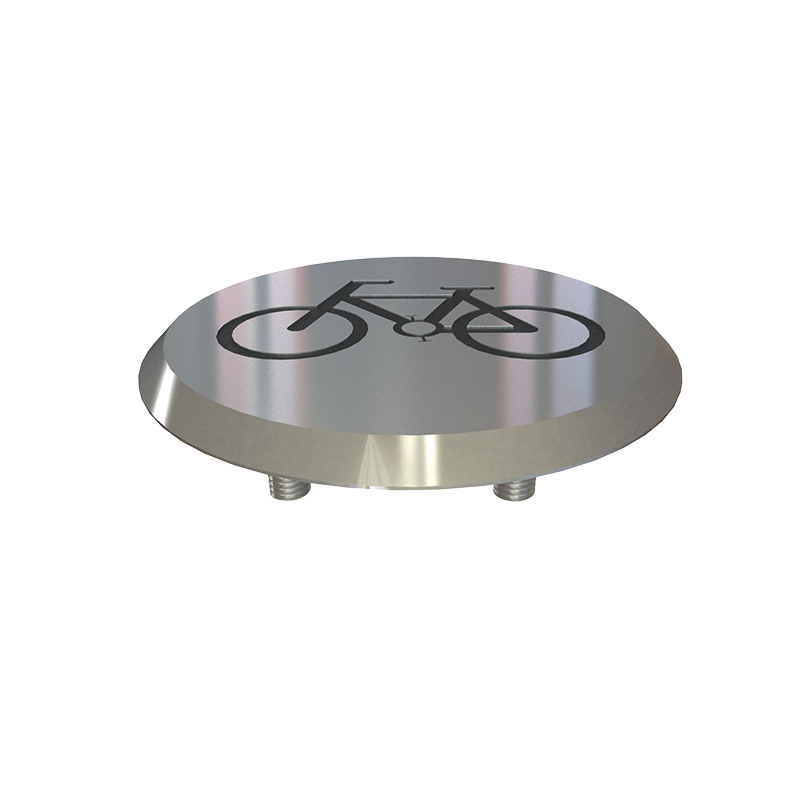

This 90mm plain-top
demarcation stud is manufactured from 316L stainless steel and features a smooth, flat surface with bevelled edges. Measuring 90mm in diameter and 5mm in height, its large face provides ample space for engraved or laser-etched information.
Symbols, wording, numbering and logos can be added to identify an area, communicate a message or incorporate branding into the surrounding architecture.
Material Information
The stud is manufactured from corrosion-resistant
316L marine-grade stainless steel for reliable long-term performance in internal and external environments.
The addition of molybdenum gives 316L stainless steel greater resistance to corrosion than commonly used grades such as 304, particularly in exposed locations where the stud may encounter moisture, salts or other environmental contaminants.
Design

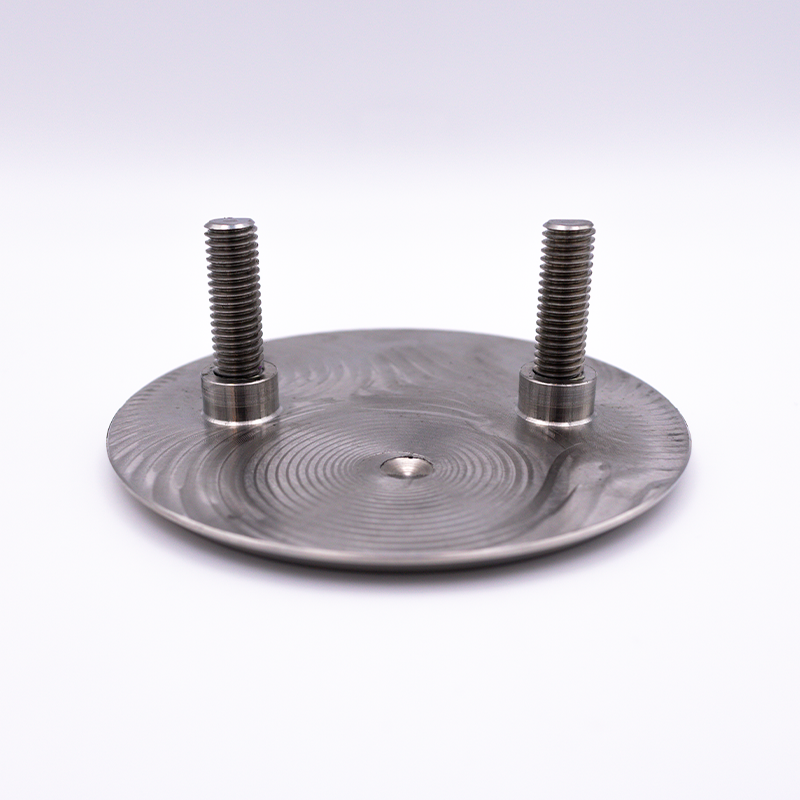

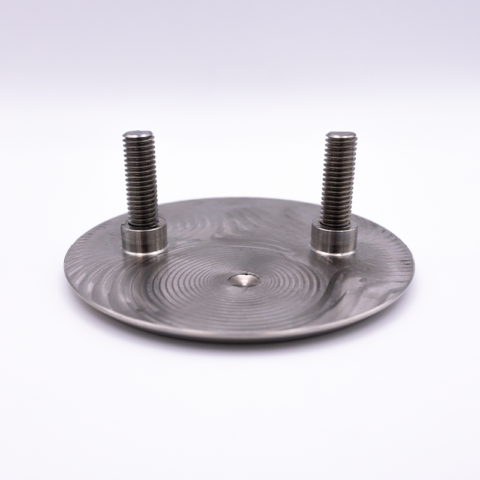

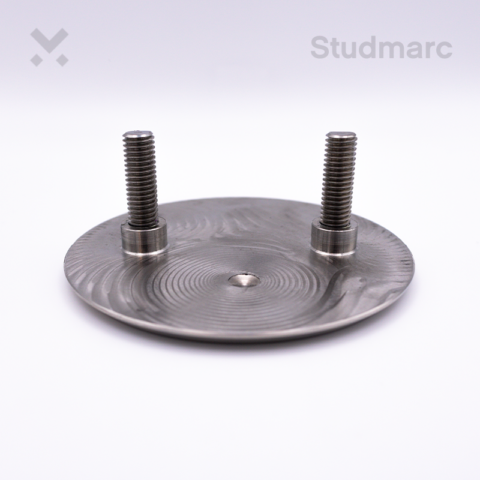

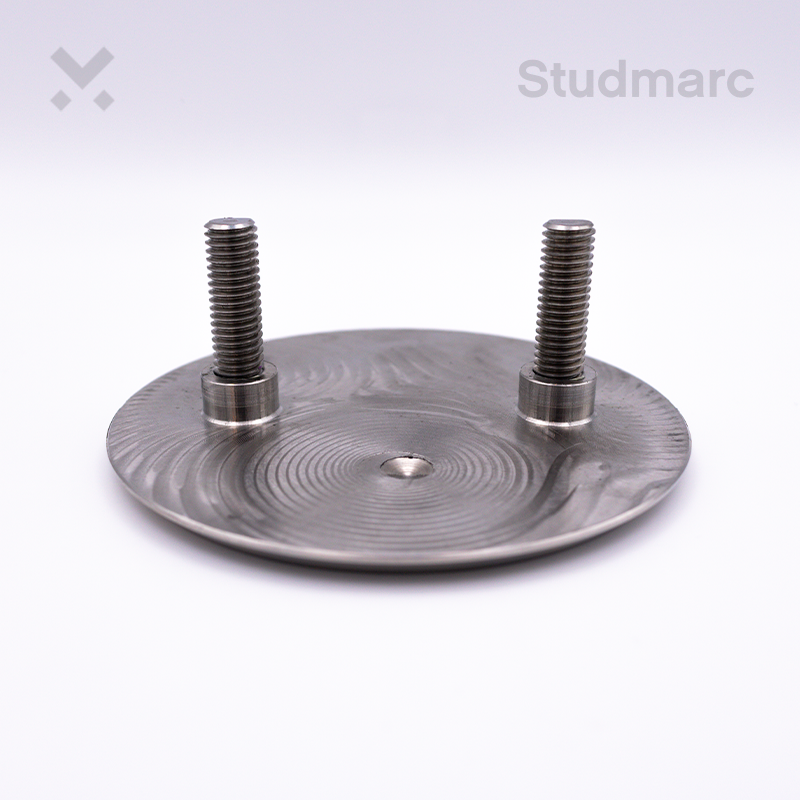

The stud features a broad, smooth face with bevelled edges and two M8 threaded fixings. The two fixing points help secure the larger stud and prevent it from rotating after installation.
Its 90mm face can accommodate:
- Logos and branding
- Directional symbols
- Numbers and reference codes
- Ownership or boundary information
- Short instructions or identification marks
For help matching the size, profile and finish to an installation, read
how to choose the right demarcation stud.
Application
These studs are suitable for:
- Marking property and area boundaries
- Identifying outdoor dining or commercial spaces
- Displaying engraved signage and information
- Numbering parking bays or designated areas
- Incorporating branding into paving and public spaces
- Marking pedestrian routes and walkways
This product is intended for area demarcation and visual communication rather than recreating a prescribed tactile warning surface. Read about
the difference between demarcation studs and tactile studs.
Installation
This stud is installed using the drill-and-resin method:
- Mark the positions of both fixing points.
- Drill two holes suitable for the M8 threaded fixings.
- Remove all dust and debris from the holes.
- Apply a suitable epoxy resin.
- Insert both fixings evenly into the holes.
- Remove any excess resin and allow it to cure fully.
Curing times vary between products and environmental conditions, so always follow the resin manufacturer’s instructions.
Installation equipment required: Drill, suitable drill bit, installation template or setting-out equipment, push pump, epoxy resin and applicator gun.
For detailed preparation and fixing guidance, read
how to use epoxy resin to install architectural studs.
