Description

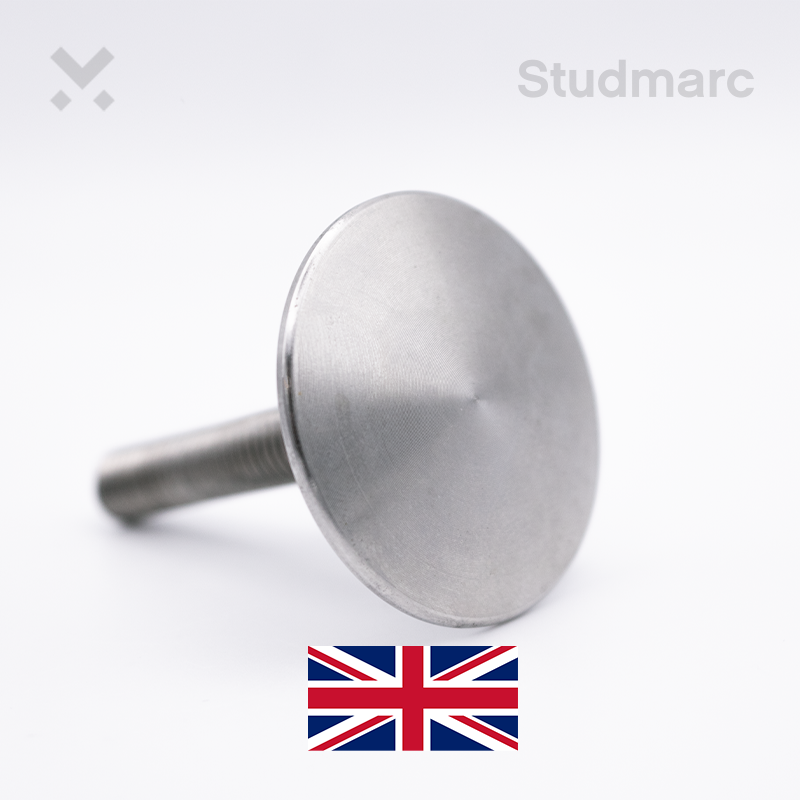

This 40mm low-dome demarcation stud provides a durable, low-profile way to mark boundaries, identify areas or display engraved information.
Manufactured from 316L stainless steel, the stud measures 40mm in diameter and projects 5mm above the installed surface. Its broad, smooth face can be engraved or laser etched with symbols, wording, numbering or logos.

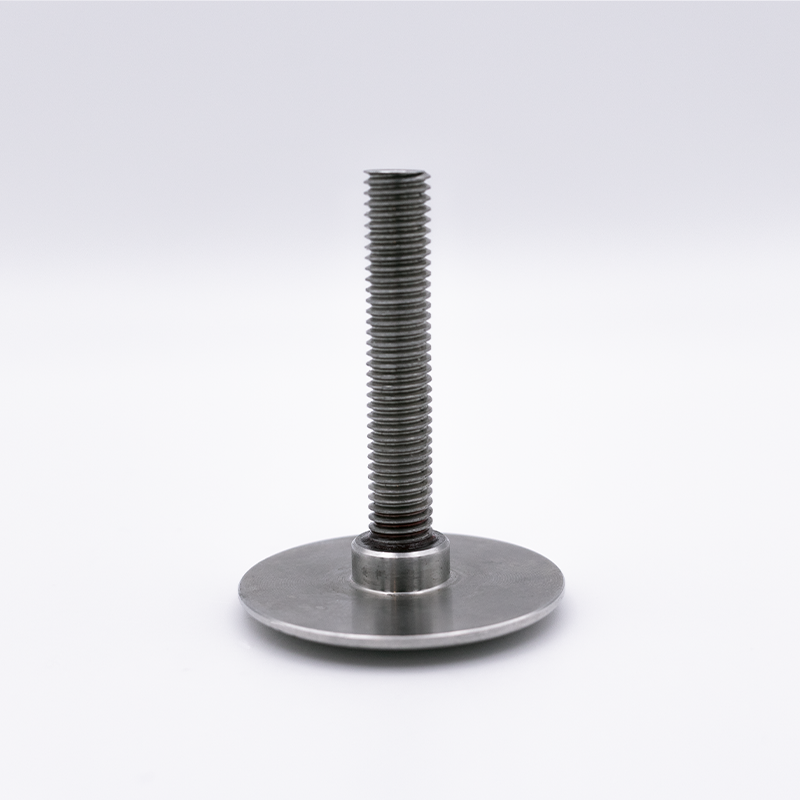

An M8 threaded fixing provides a strong mechanical key for the resin, helping secure the stud within the installation surface.
Limited availability item.
Material Information
The stud is manufactured from corrosion-resistant
316L marine-grade stainless steel for reliable long-term performance in internal and external environments.
The addition of molybdenum gives 316L stainless steel greater resistance to corrosion than commonly used grades such as 304, particularly in exposed locations where the stud may encounter rain, moisture, salts or other environmental contaminants.
Design

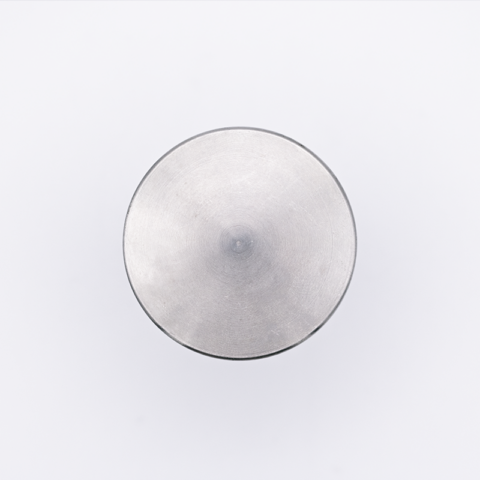

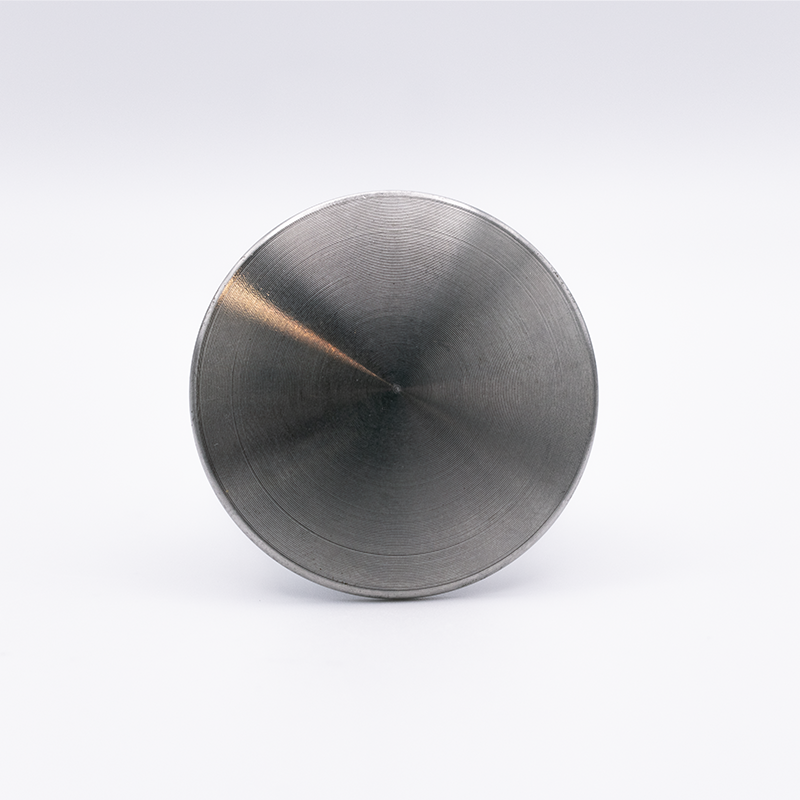

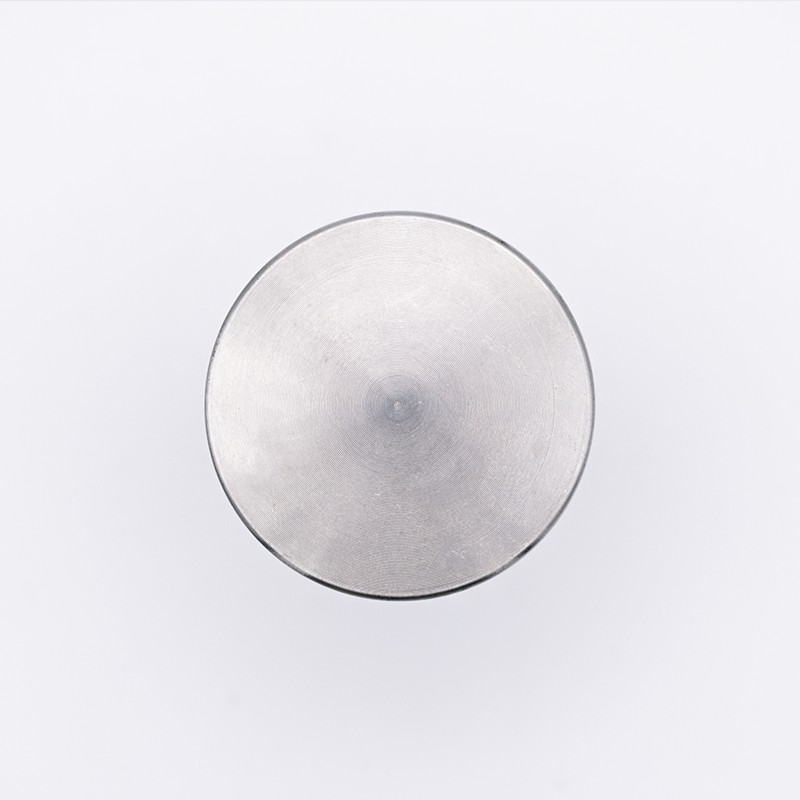

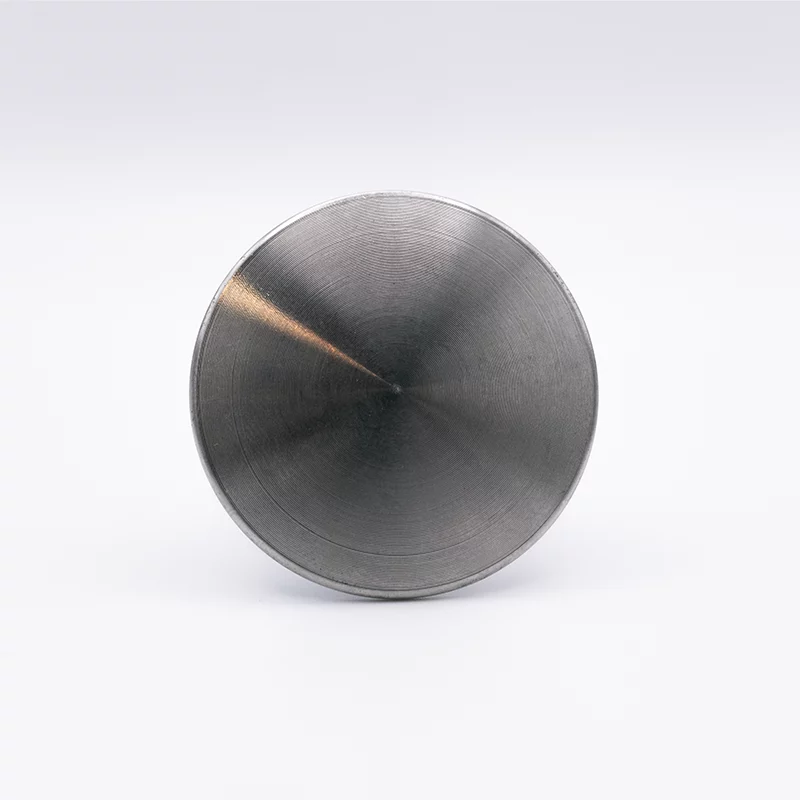

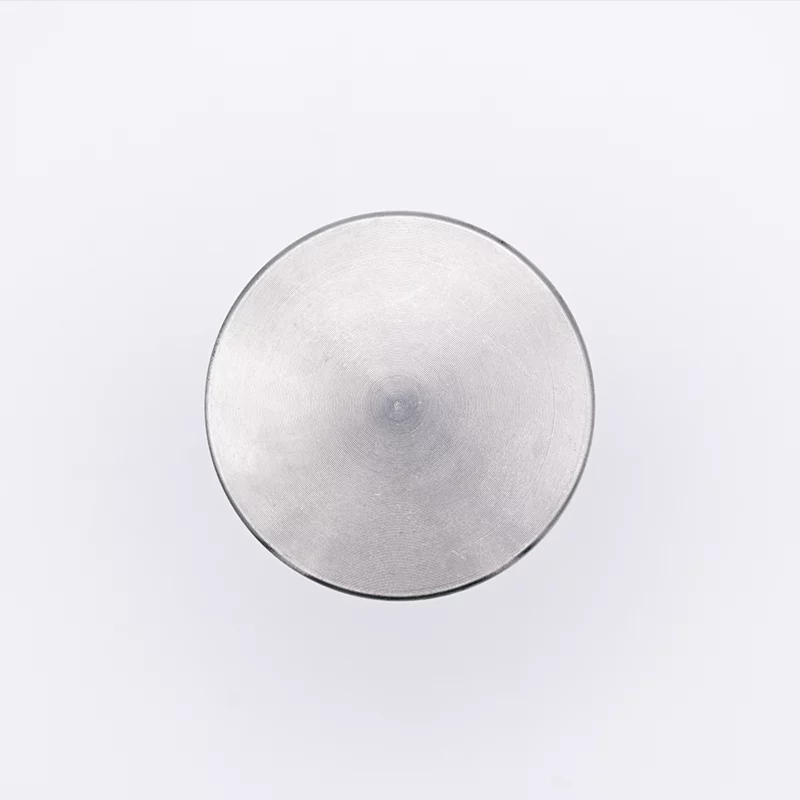

The stud features a smooth, low-dome profile with bevelled edges, creating a noticeable boundary without the projection of a larger domed stud.
Its 40mm face provides space for laser-etched or engraved:
- Symbols and directional markers
- Numbers or reference codes
- Wording and identification
- Company logos and branding
For more guidance on matching the profile, size and finish to an installation, read
how to choose the right demarcation stud.
Application
These studs are suitable for:
- Marking property or area boundaries
- Identifying outdoor dining areas
- Demarcating pedestrian routes and walkways
- Numbering or labelling designated spaces
- Displaying engraved signage, symbols or branding
Demarcation studs define an area rather than create a prescribed tactile warning surface. Our guide explains the
difference between demarcation studs and tactile studs.
Installation
This stud is installed using the drill-and-resin method:
- Mark the required position.
- Drill a hole suitable for the M8 threaded fixing.
- Remove all dust and debris from the hole.
- Apply a suitable epoxy resin.
- Insert the stud and remove any excess resin.
- Allow the resin to cure fully before reopening the area to traffic.
Curing times vary between products and environmental conditions, so always follow the resin manufacturer’s instructions. Read our complete guide to
installing architectural studs with epoxy resin before installation.
Installation equipment required: Drill, suitable drill bit, push pump, epoxy resin and applicator gun.
