Expand image

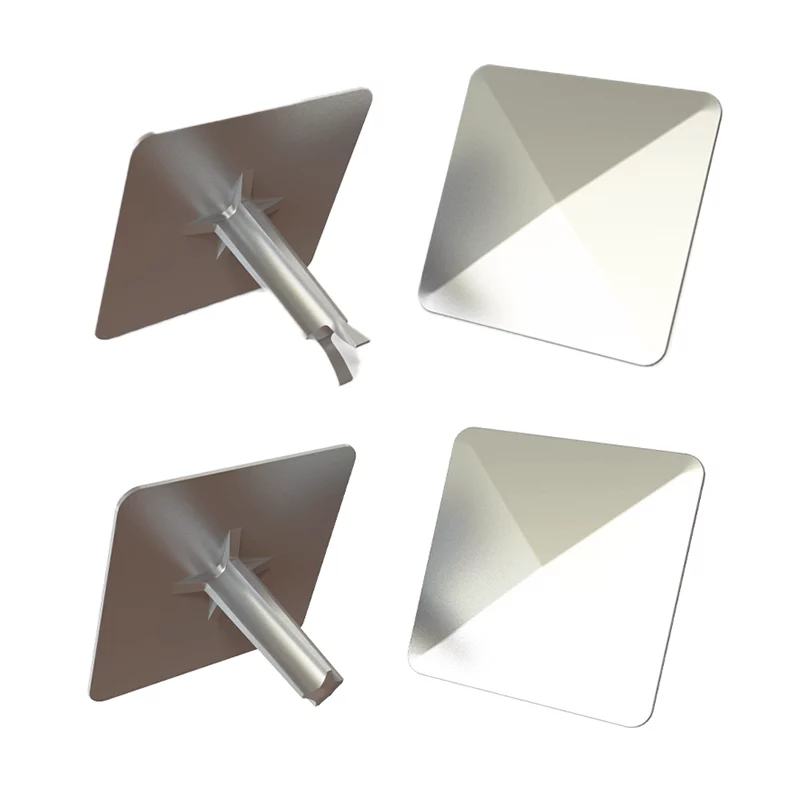

Four metal diamond-shaped panels with threaded posts attached, displayed against a white background. Two panels show the post attachment side, while two show the smooth decorative surface.
Road Stud Fishtail
Plain Surface Steel Road Stud Chisel Shank

Stud Diameter

100mm

Fitment Options

Chisel or Fishtail Shank

Specification Sheet
NBS Products

Stainless Steel Plain Surface Road Stud

Outdoor

Pedestrian

Roads

Quantity Discounts

Quantity

100-499

500-999

1000+

Price

£7.56

£7.40

£7.07

Quantity Discounts

Quantity

100-499

500-999

1000+

Price

£7.56

£7.40

£7.07

£8.13
In Stock
Quantity discounts
Quantity discounts
* The price shown has been converted from GBP to show you the approximate cost in USD.
The exchange rate may change before you pay.

£POA

Description

Plain top road studs constructed from high-quality stainless steel, are used in demarcating pedestrian crossing points, parking bays, and boundaries. These road studs are DfT compliant and are available with a fishtail shank or a chisel shank.

Material Information

This stud is made from stainless steel.

Design

The stud features a large smooth surface measuring 100mm by 100mm.

Application

These studs are ideal for use in demarcating:
  • Pedestrian crossing points
  • Parking Bays
  • Boundaries

Installation

These studs are installed by:
  1. Drilling a hole into the desired surface
  2. Clearing the hole of dust and debris
  3. Applying epoxy resin as a fixing agent
  4. Inserting the stud into the hole
Please note: It can take around 24 hours for the epoxy resin to be completely set. Installation equipment required: Drill, drill bit, push pump, epoxy resin, and applicator gun.

From £8.13

SKU: N/A Categories: , Tags: , ,

Stud Diameter

100mm

Fitment Options

Chisel or Fishtail Shank

Specification Sheet
Thank you for your enquiry.
We will be in touch soon

Quantity Discounts

Quantity

100-499

500-999

1000+

Price

£7.56

£7.40

£7.07

Quantity Discounts

Quantity

100-499

500-999

1000+

Price

£7.56

£7.40

£7.07

Additional information

Weight N/A
Length

100mm
Fitment

Chisel Shank, Fishtail Shank
Width

100mm
Material

Stainless Steel
NBS Specifiable

Yes
